YHGR-1200Z Mobile Rail Welding | Advanced DC Rail Welding & Heat Treatment System
Revolutionary DC-Powered Rail Maintenance Technology
Industry-Leading Solution for Modern Rail Networks

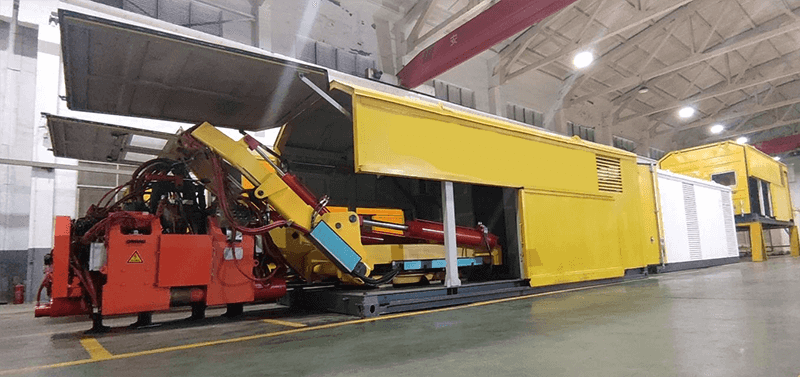

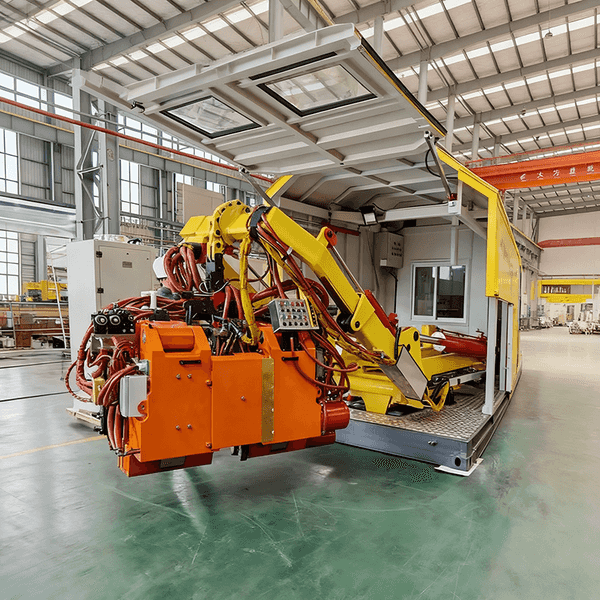

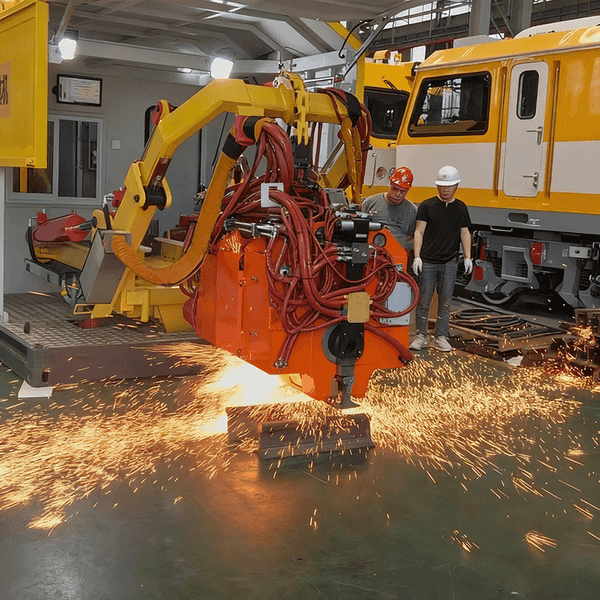

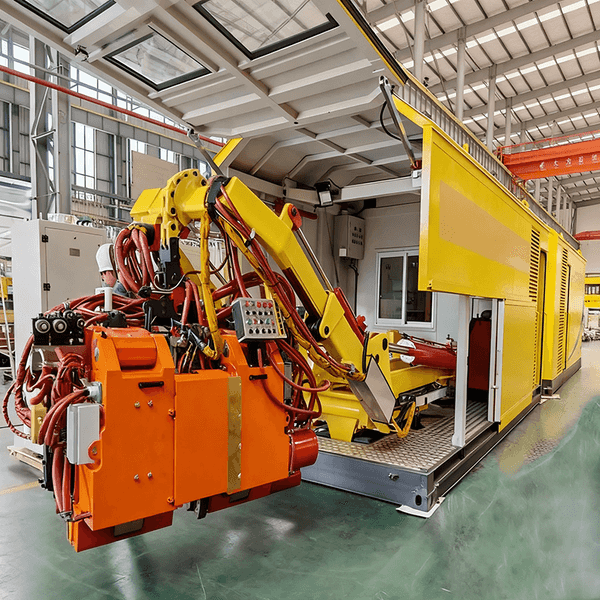

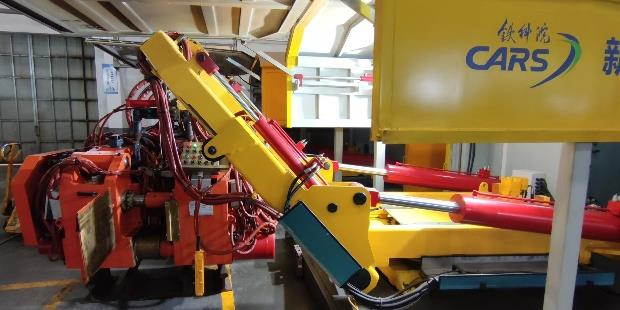

The YHGR-1200Z Mobile Rail Welding system integrates DC flash welding and induction heat treatment into a single mobile platform, powered by advanced energy storage. Built for high-altitude corridors, tunnels, and urban rail projects, it delivers superior joint quality while reducing emissions and cutting noise by 68% compared to conventional diesel equipment.
Core Innovations
Dual-Process Engineering
- DC Flash Welding: 204kW output for uniform "bridge transfer" heating
- Induction Heat Treatment: Integrated coil design with dual-frequency switching
- Compact Architecture: Patented 4-axis design for optimized workflow
Power System Excellence
- Energy Storage: 466kWh LiFePO₄ battery bank
- Stable Performance: Less than 5% voltage fluctuation
- Extended Service Life: 6,000 cycles at 80% capacity retention
Intelligent Control Hub
- MF inverter technology
- Automated cooling management
- Real-time weld parameter tracking with fail-safes
Technical Advantages Over Conventional Systems
| Performance Metric | YHGR-1200Z Mobile Rail Welding | Traditional AC Systems |
|---|---|---|
| Tensile Strength | 1010 MPa | ≤950 MPa |
| Impact Energy | 27.2 max | ≤22.9 |
| Grain Structure | Fine, uniform | Irregular |
| Operational Altitude | 5,500m capable | 40% power loss at 3,000m |
| Noise Level | ≤75 dB | ≥110 dB |
| Environmental Compliance | Zero emissions | CO₂/SO₂ exhaust |

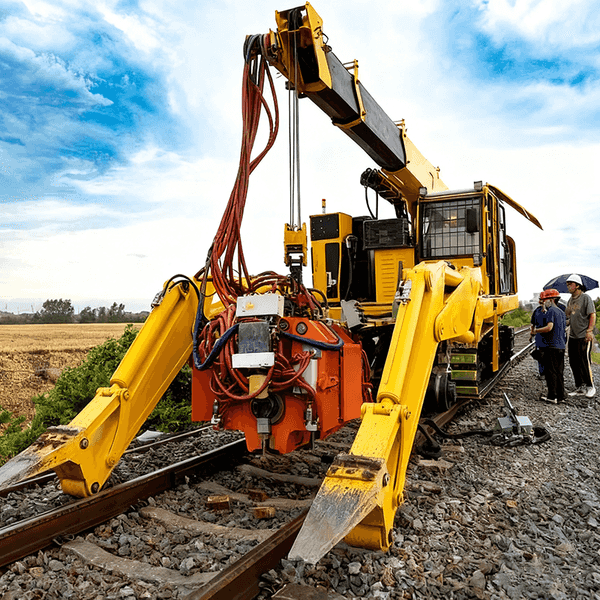

Proven Applications
- High-Mountain Corridors: Maintains full power at 5,500m altitude
- Urban Transit Tunnels: Eliminates fumes during night maintenance
- Heavy-Haul Lines: Processes U75G/UIC60 rails with 0.93 hardness retention
- Emergency Repairs: Self-contained power for rapid response
Rigorous Validation
- Third-Party Certification: Compliant with GB/T 23470-2009 standards
- Field Testing: 14 consecutive welds at -10°C ambient temperature
- Metallurgical Superiority: 15% finer grain structure vs AC welding
- Safety Endorsement: China Academy of Railway Sciences Type Approval
Technical Specifications
| Specification | Details |
| Power Output | 204kW continuous |
| Battery Configuration | 15 packs |
| Hydraulic Pressure | Low: 5MPa / High: 15MPa |
| Rail Compatibility | 50–75kg/m profiles |
| Operating Temperature | -10°C to 45°C |
| Positioning Accuracy | ±0.5mm |
| Cooling Capacity | 30L/min water + 0.6MPa air |
FAQ for Contractors
Q: How does DC welding extend rail service life?
Q: What emergency protocols are integrated?
Q: Maintenance requirements in remote areas?
Q: Noise reduction compared to conventional units?
Why Contractors Prefer YHGR-1200Z Mobile Rail Welding
- Operational Savings: 60% lower energy costs vs generator systems
- Productivity Gain: 45-minute weld-to-treatment cycles
- Zero Downtime: Modular battery swap capability
- Future-Ready: IoT integration for remote process monitoring
- Safety Certified: Meets EN 15085-2 welding standards
