DZG-5 Lithium Battery Rail Track Drill Machine | Portable Railway Drill

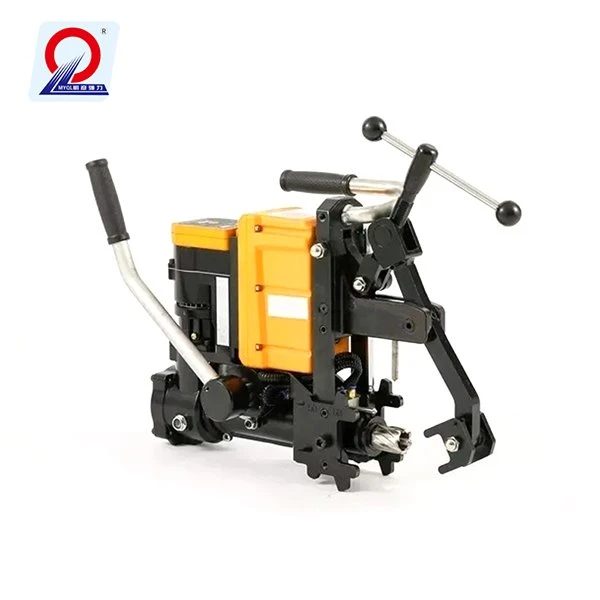

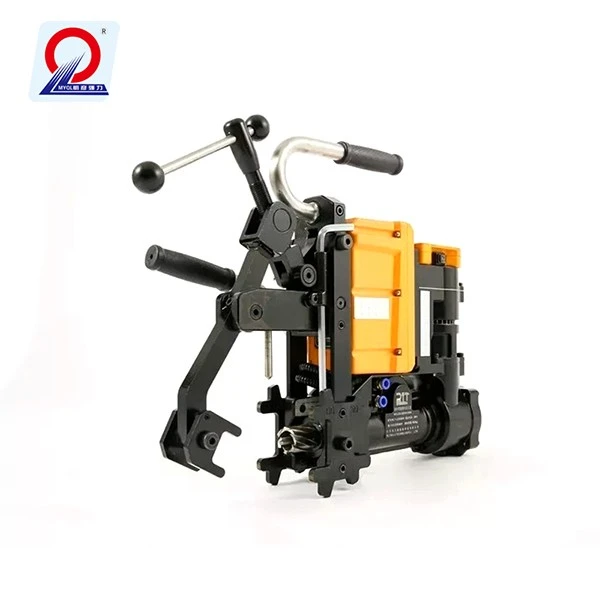

The DZG-5 lithium battery rail track drill machine weighs only 16.5 kg including battery and fixture, measuring 515x148x390 mm. Its compact structure and high-precision feeding parts ensure drilling holes with accuracy up to ±0.2 mm.

The machine is powered by a 36V/12Ah lithium battery, operates without exhaust emissions, and is ideal for railway line laying, maintenance, and emergency repair operations. Its flexible clamping system adapts to various rail types, and the water cooling system prolongs drill bit life.

Product Specification

Battery Pack Rated Voltage	36V
Battery Pack Rated Capacity	12Ah
Drilling Range	Φ9.8 mm, Φ13.5 mm, Φ22 mm, Φ31 mm
Size	515x148x390(mm)
System weight	16.5kg (including battery pack and fixture)

Application

Railway line laying: Accurate drilling for rail connection holes and signalling equipment installation.

Maintenance and Repair: Replace worn bolts and repair rail joints efficiently during daily maintenance.

Emergency repair: Quickly address broken rails or cracks to minimize downtime.

Key Advantages

High-efficiency and Portable: Drills up to 20 holes per hour without external power. Complete system weighs only 16.5 kg including battery and fixture.

Precise Engineering: High-precision feeding parts ensure drilling accuracy up to ±0.2 mm, compliant with railway construction standards.

Environmental Protection and Safety: No fuel emissions, suitable for tunnels and enclosed areas with poor ventilation.

Flexible Adaptation: Clamping parts compatible with various rail types; water cooling prolongs drill bit life.

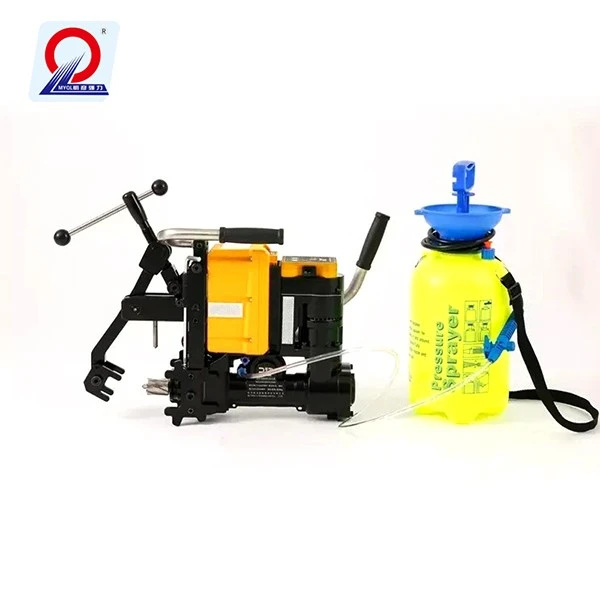

Cooling System Usage

(1) Fill the water pressure tank with approximately 5L of cutting fluid according to the scale.

(2) Connect the water pipe to the machine, pressurize the water supply, open the outlet valve, and start drilling. Cutting fluid will flow through the drill bit, ensuring smooth operation and cooling.

Maintenance and Upkeep

(1) Wipe the machine clean after drilling to prevent debris accumulation.

(2) Check for water leaks at the spindle regularly and replace seals if necessary.

(3) Replace worn drill bits; do not reuse them.

(4) Remove the battery before adjusting or repairing the machine.

(5) If unused for long periods, store drill bit in a dry, ventilated, non-corrosive area.

(6) Remove the lithium battery after drilling and store separately.
