Introduction

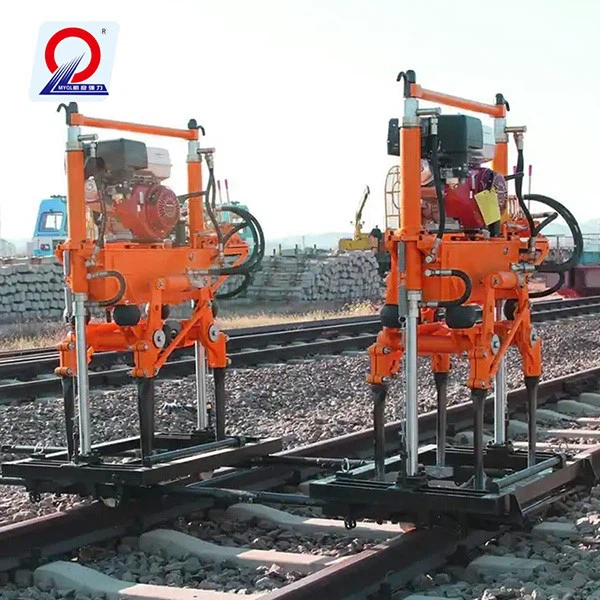

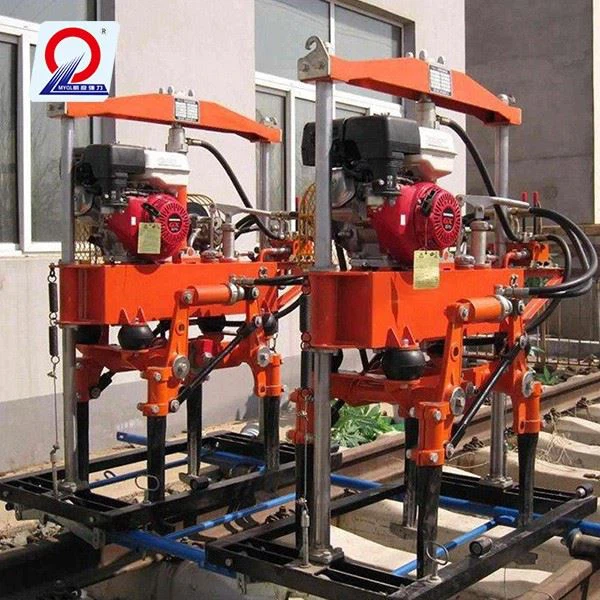

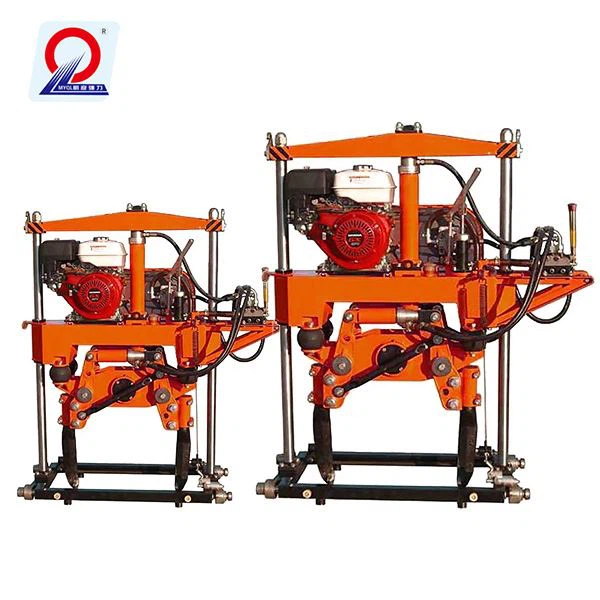

The Ballast Compactor (YCD-2 Hydraulic Turnout Tamping Tools Railway) is an advanced railway maintenance machine designed for efficient tamping of turnout areas, high-speed turnouts, and conventional lines. Its hydraulic-driven, high-frequency vibration system ensures dense ballast compaction, improving track support strength and train ride smoothness. Suitable for both single and group operations, the Ballast Compactor offers high efficiency, low failure rates, and reliable performance for complex track structures.
Key Features & Specifications

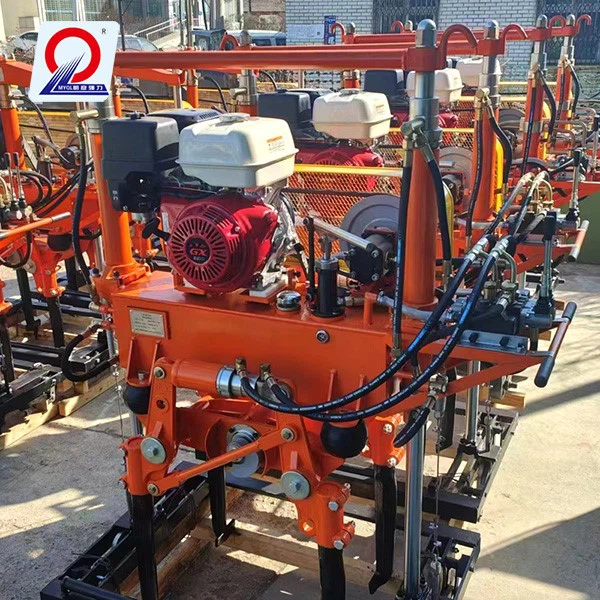

The YCD-2 Ballast Compactor is powered by a GX390 9.6KW gasoline engine, featuring a high-frequency hydraulic vibration system operating at 65-67Hz. Its working pressure is 4Mpa+0.5Mpa, with an exciting force of 32.5kN. The compact dimensions (1350x520x1650mm) and main weight of 335kg make it maneuverable in turnout areas, while maintaining optimal tamping efficiency.
Technical Specifications
| Power | Gasoline engine GX390 9.6KW |
| Vibration Frequency | 65-67Hz |
| Exciting Force | 32.5kN |
| Hydraulic Pressure | 4Mpa+0.5Mpa |
| Efficiency | 1 set of turnouts/30-40 minutes; 240 sleepers/hour |
| Dimensions (L×W×H) | 1350x520x1650mm |
| Main Weight | 335kg |
Applications & Use Cases
- Tamping high-speed, standard, and special turnout areas
- Handling ballast tamping on conventional lines
- Operations in complex structures such as switches, guardrails, and turnout joints
- Two or four machines can operate together for group efficiency
- Improved maintenance quality and track stability with dense compaction
The Ballast Compactor excels in challenging areas, ensuring high precision and operator safety.
Routine Maintenance
- Inspect machine body, bolts, and components for wear or deformation
- Check hydraulic system, oil levels, and filters
- Ensure tamping drill bits are in good condition
- Lubricate vibration mechanism and maintain engine per specifications
- Remove debris and maintain clean, safe operating conditions
Company Information
Our company is based in the Zhengzhou High-Tech Industrial Development Zone, covering an area of over 20,000 square meters, including a modern office building. We specialize in the production of railway maintenance machinery, including the YCD-2 Ballast Compactor, offering OEM support, reliable after-sales service, and technical guidance to customers worldwide.
